DESCRIPTION

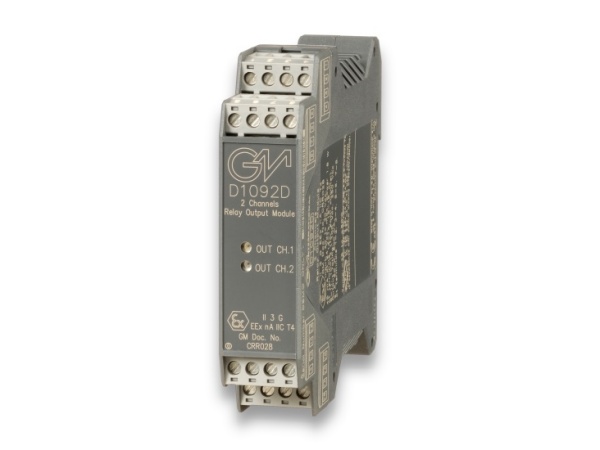

The dual channel DIN Rail Relay Output, D1092D, is relay modules suitable for the switching of safety related circuits, up to SIL 3 level according to IEC61508:2010 Ed. 2, for high risk industries. It provides isolation between input and output contacts. D1092D provides 2 SPST contact for normally energized loads and 2 SPST contact for normally de-energized loads. When the relay is energized, the contacts are closed. When the relay is de-energized, the contacts are open. Compatibility with specific DO cards with pulse testing needs to be verified. This relay module is not suitable for low-current consumption applications (system-to-system signalling, driving LEDs, etc.).
FEATURES
SIL3/SC3
Installation in Zone 2, Division 2
2 fully independent channels.
1 SPST contact for NE load and 1 SPST contact for ND load for each channel.
5 A inrush current at 30 Vdc / 250 Vac.
Input/Output isolation.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1.
High Density, two channels per unit.
CHANNELS
2
GMI RELATED MODELS
D5090S
D5090S-086
D5090S-102
D5091S
D5091S-103
D5094S
D5094S-104
D5095S
D5095S-105
D5096S
D5096S-100
D5096S-106
D5097S
D5097S-107
D5098D
D5098S
D5099D-108
D5099S
D5099S-108
D5290S/SA
D5290S
D5290S-078/SA
D5290S-078
D5290S-079
D5290S-080
D5290S-084
D5290S-091
D5290S-092
D5291S
D5291S-097
D5293S
D5294S
D5295S
X1-NIS-RLO/EM-01-S
X1-NIS-RLO/EM-02-S
X1-NIS-RLO/EM-03-S
X1-NIS-RLO/EM-04-S
X1-NIS-RLO/EM-05-S
X1-NIS-RLO/SS-01-S
X1-NIS-RLO/SS-02-S
X1-NIS-RLO/SS-03-S
X1-NIS-RLO/SS-04-S
X1-NIS-RLO/SS-05-S
D1092D
D1092D-069
D1092S
D1092S-069
D1093S
